Comas muffin line

Product specifications

Manufacturers: Reimelt, Tonelli, Comas, Inteda Engineering, Hammerle/Horburger, Schmid, Adept, Kallfass, Vicmo, Ilapack
Year: 2006, 2009, 2013, 2017
Capacity: 3.000 – 10.000 pieces / hour, depending on weight
Weight range: 50-130 gram per piece
For production of high quality muffins
Out of production, stored

Line consisting of:
Ingredient scaling,dosing and mixing, consisting of:

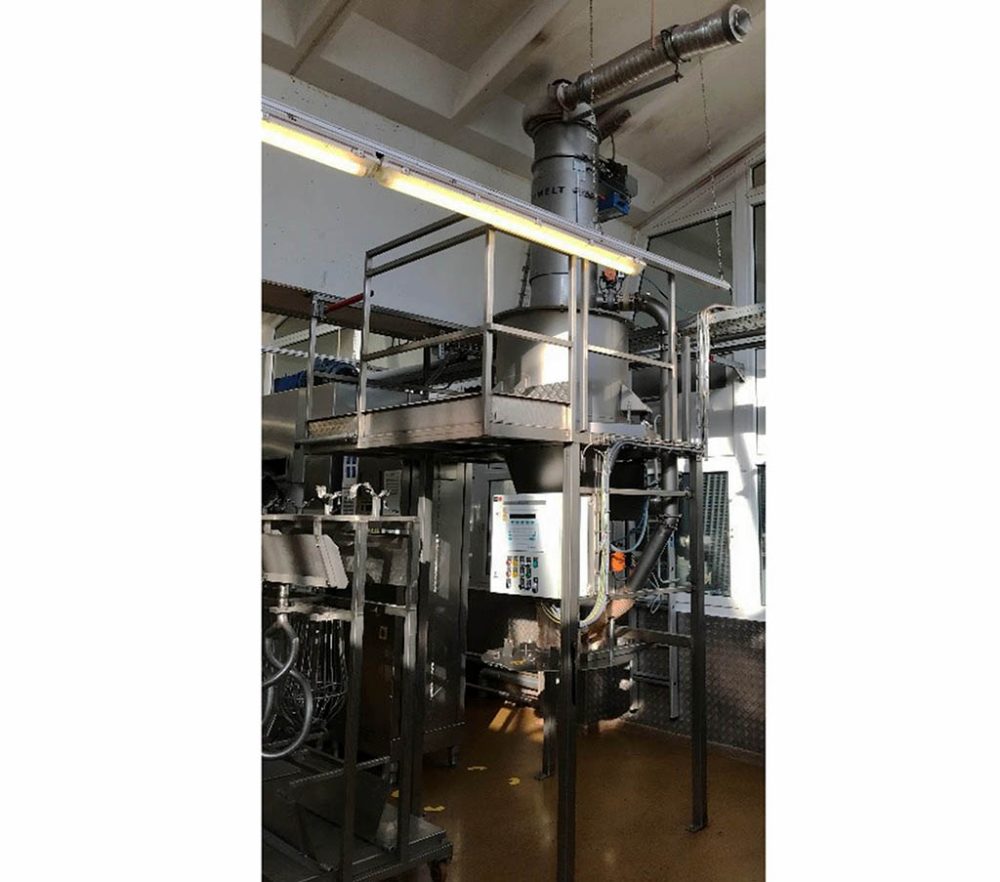

● Reimelt weighing head
● Reimelt sugar dosing unit
● Tonelli mixing system U 3300

Inteda Engineering Form sheet cleaning and suction station, capacity 250 forms/hour, consisting of:
● Transport conveyors
● Baking form cleaning

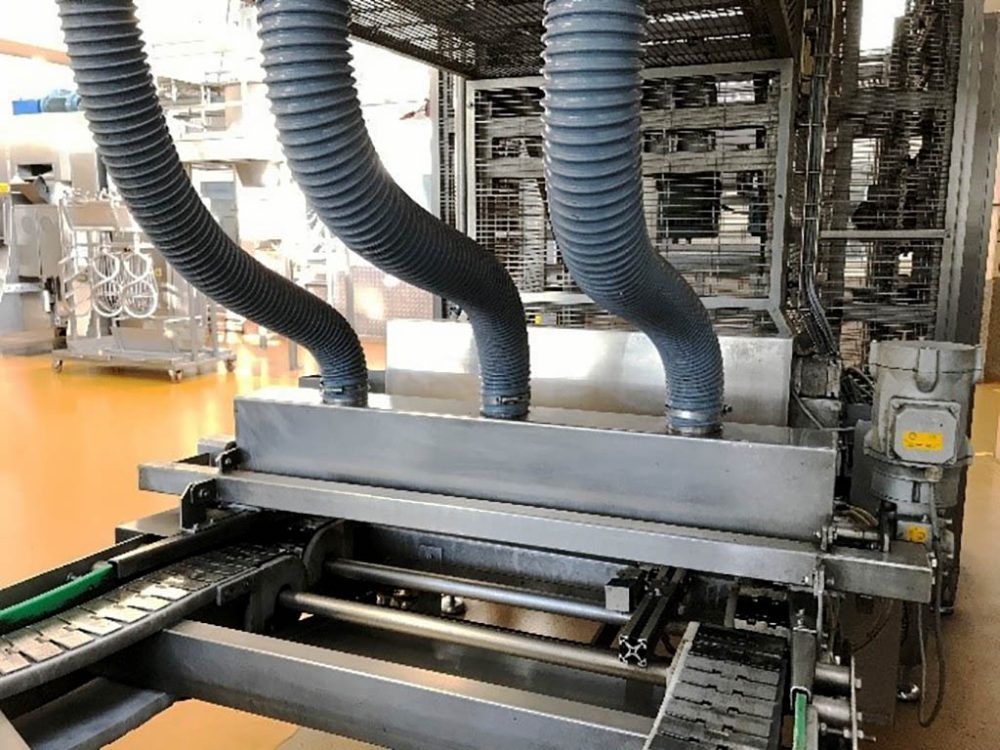

● Crumb extraction

Comas baking tray handling system, consisting of:
● Muffin tray unloading station
● Muffin tray stacking station
● Empty muffin tray return station
● Muffin tray adding station
● Inteda Engineering insert mold vacuum handling device

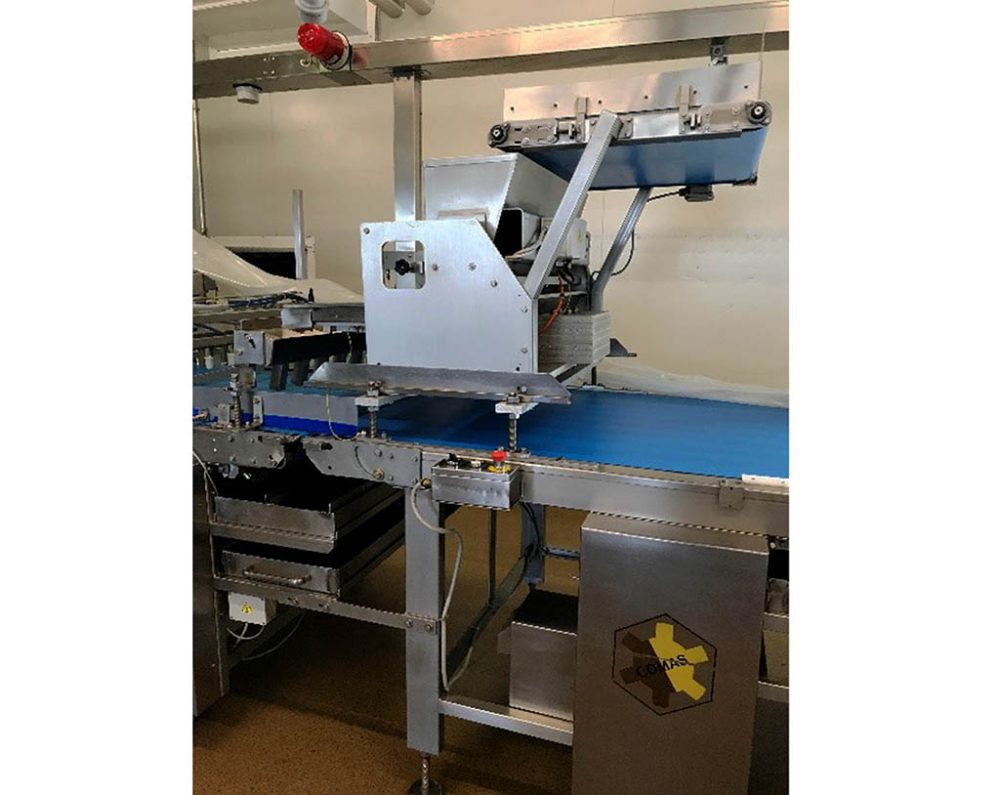

Comas muffin filling station, consisting of:

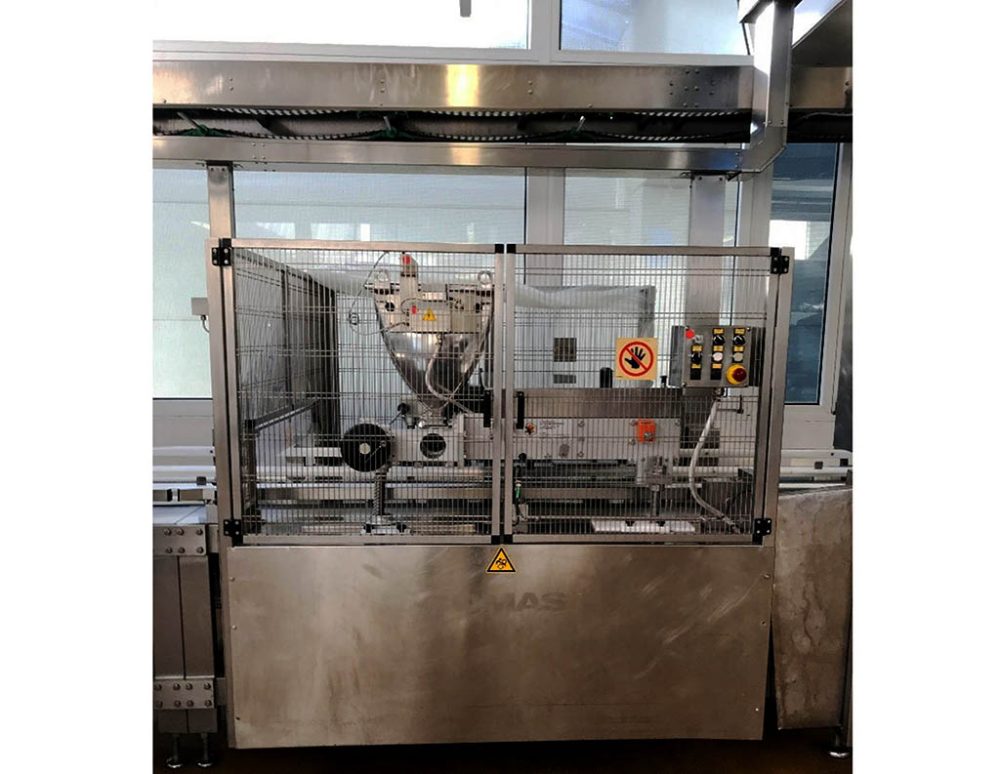

● Muffin dispenser, model IS 1100 (270 trays/h)
● Muffin cream cheese topping station, model IT 600
● Ingredient decoration station
● Inteda Engineering fruit decoration station
● Manual form take off on racks
Comas decorating, consisting of:
● Injection station, model LDI
● Turning station, model LDI 1000
● Decap station
● Glaze station
● Vibration dispenser unit, model 0039-414

Packaging system:
● Packaging of single muffins (10.000 pieces/h)
● Blister packaging 12 pieces per set (833 pieces/h)
● Blister packaging 2 pieces per set (4.000 pieces/h)

Consisting of:
● Inteda Engineering automatic palletizing system and conversion of pallet transport

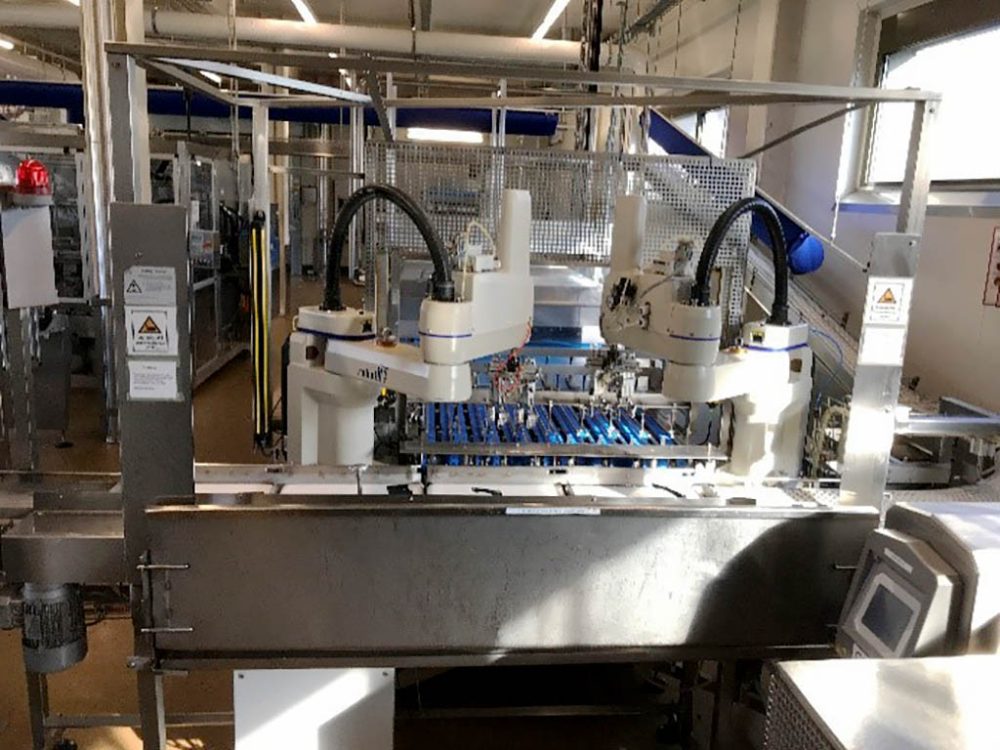

● 2 Adepts robots, model Cobra S800 Dual CX Robot system

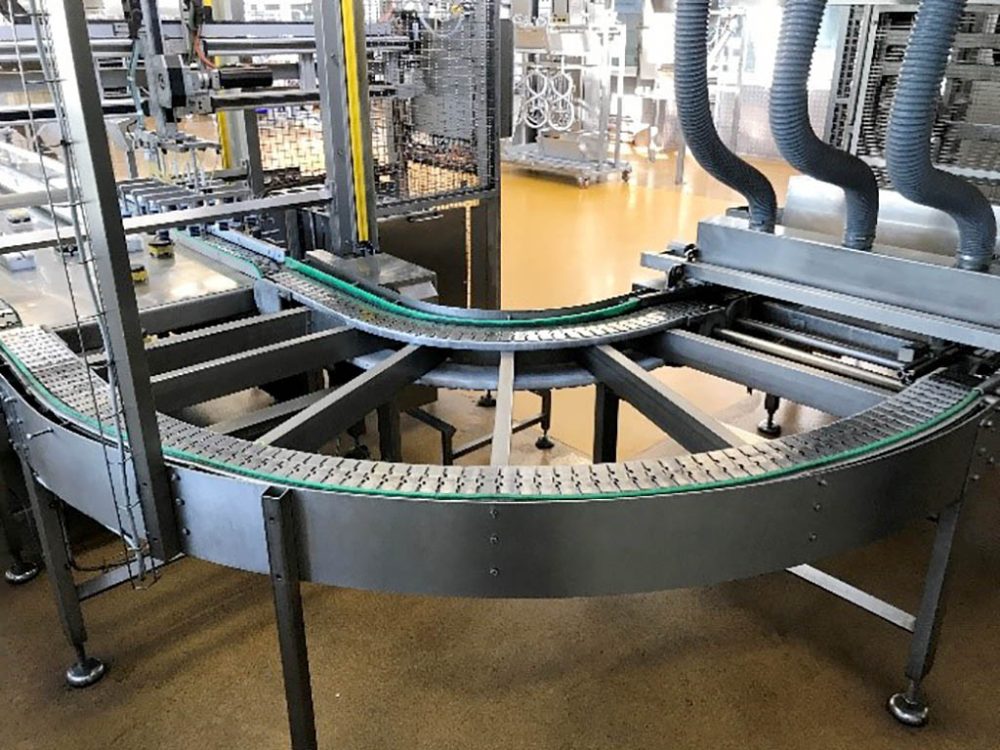

● Transport conveyors
● Inteda Engineering stacker station

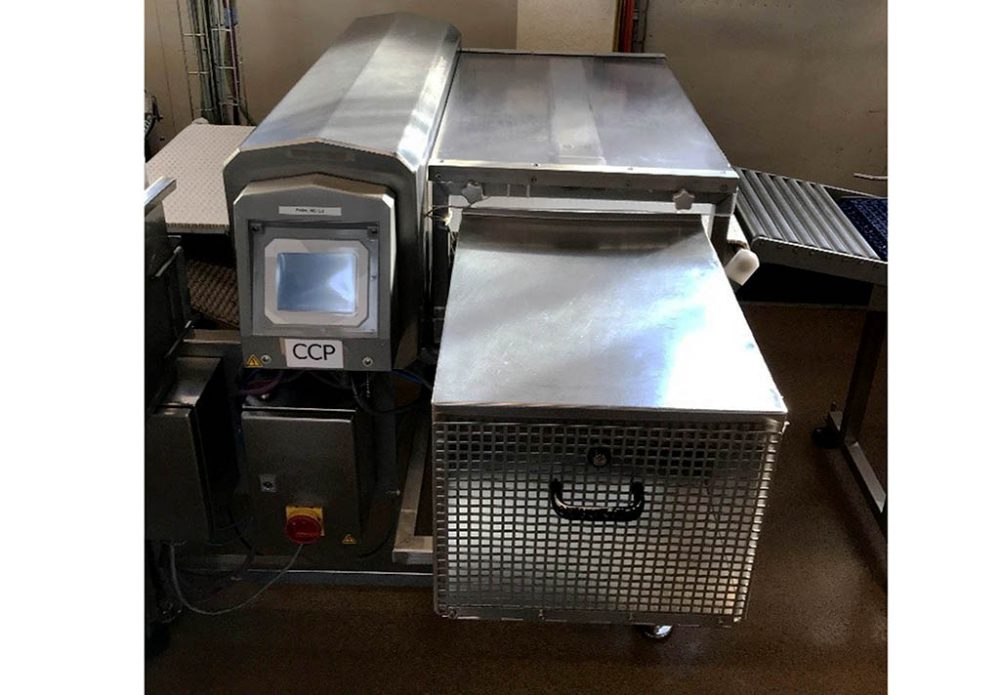

● Metal detector
● Kallfass side sealing machine station, model Compact 450 SO
● Labeling unit

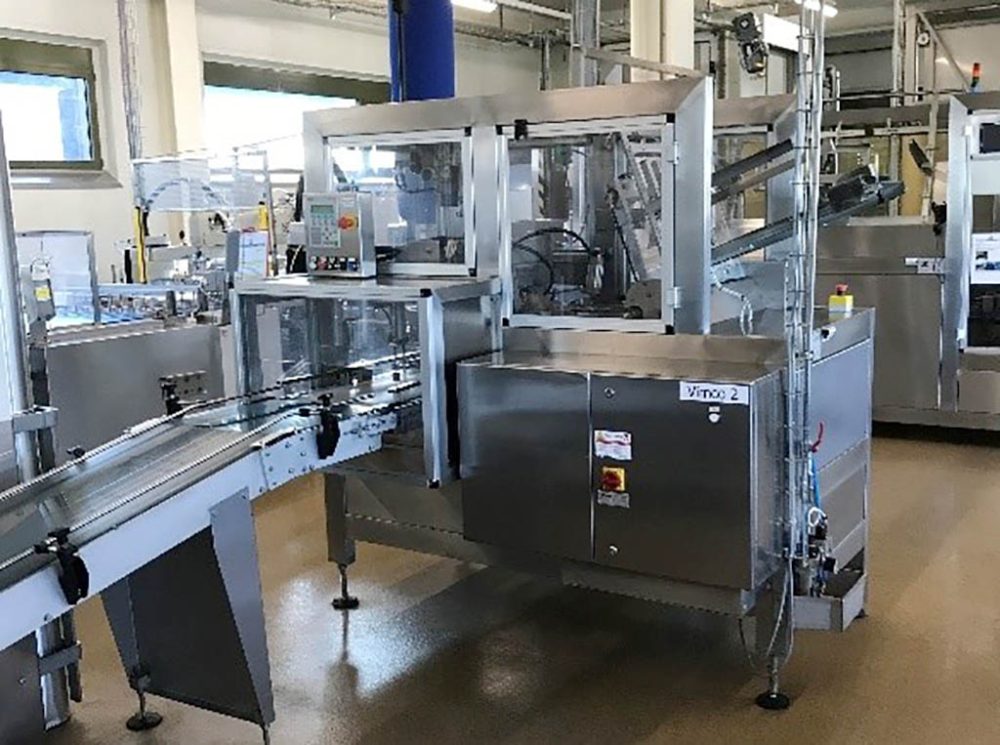

● Vimco packaging machine (wrap around), model 817
● Vimco tray erector, model FAC 555
● Vimco Inserter, model 818

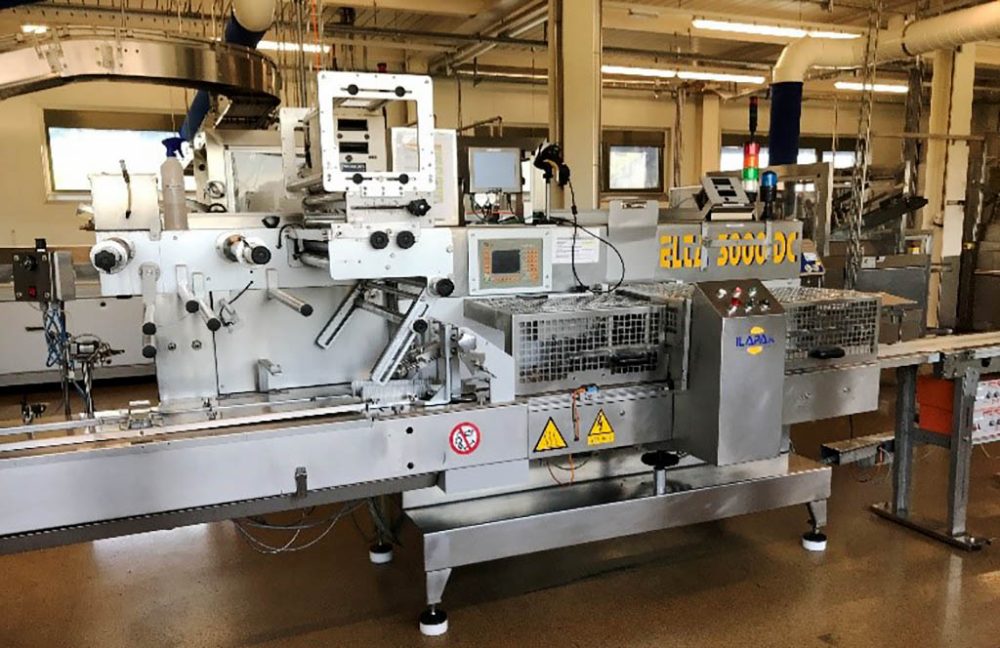

● Ilapack foil packaging machine, model Delta 3000DC
● Labeling unit
● Metal detector

Additional accessories:
● W&K Automation GmbH emulsion mixer, model UR 600
● Boyens Backservice spray unit , model AP 400
● Fruit spreader device including work platform (incorporation of frozen fruits)

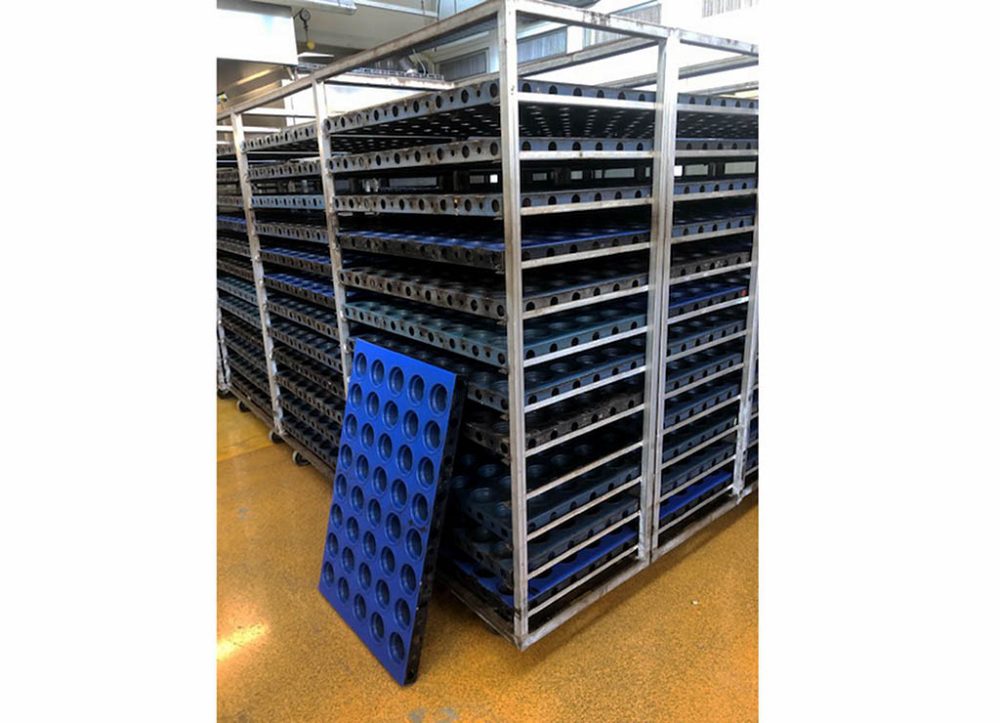

● Rack trolleys approx. 35 pieces in stock with 12 trays, per tray 40 molds
● Wolf glaze dissolving kettle for chocolate
● MFH chocolate heater, model 001
● Tonelli air pump/filling machine, TSB 300
● 35 baking trolleys with 12 levels for WP Rototherm 1280 (including baking trays)

Electrical 220/380 V – 3 Ph – 50Hz
Controlled by Siemens PLC, model S7

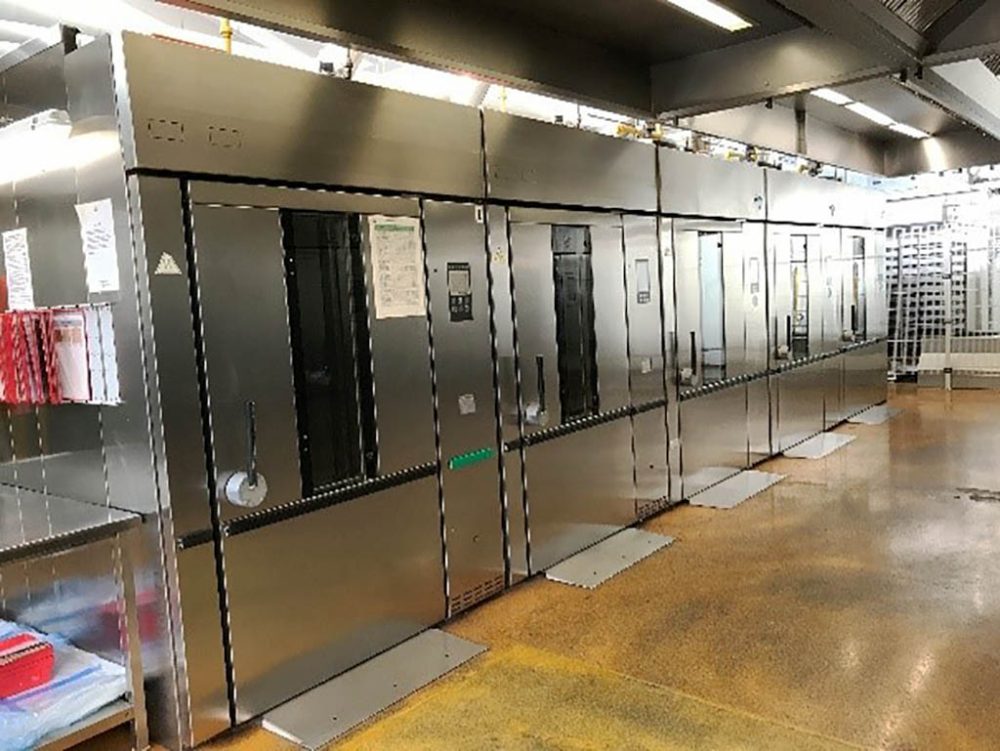

If desired a number of ovens can be added to bake the muffins
